biomass gasifier pyrolysis boiler burner electric power generator power plant wood burning electricity

The biomass gasifier pyrolysis boiler burner electric power generator power plant wood burning electricity is truly an efficient and effective body that provides lasting and sustainable power with lumber burning. This body revolutionary usage of biomass gasification innovation towards change potato lumber, sawdust, together with various other invest right in to clean-burning fuel that might create electricity together with warm.

The biomass gasifier pyrolysis boiler burner electric power generator power plant wood burning electricity is ideal for companies, ranches, as well as homes attempting decrease their power costs while furthermore triggering a planet healthiest. This procedure environmentally friendly a great substitute for traditional nonrenewable fuel sources assisting towards range rear greenhouse gas discharges.

The KEXIN brand is legendary for producing first-class and power dependable being each inexpensive and efficient. Their biomass gasifier pyrolysis boiler burner power electric power plant isn't really any type of exemption. This progressed body was meant produce electricity along with warm in an effective and technique through which is lasting assisting you conserve money while reducing your carbon dioxide effect.

Utilizing the biomass gasifier pyrolysis boiler burner electric power generator power plant wood burning electricity, you ought to have use reliable and continuous power if you may require it. This body is simple towards function effectively along with and maintain preserving, and it is designed towards last. The KEXIN label brand name shows up responsible for their services or products or even solutions, offering customer outstanding and assist towards guarantee your financial assets within this particular technique is truly a wise one.

The biomass gasifier pyrolysis boiler burner electric power generator power plant wood burning electricity is completely adjustable suit your distinct power demands. This method could be customized for your specific needs whether you are looking for towards power a facility entire or even possibly trying towards enhance your present power resources.

Equipment display

30-1000KW biomass gasification power generation equipment

Specification parameters

Name	500-1000KW biomass gasification power generation equipment
Power generation	Model	Syngas production	Raw material consumption
	JXQ-10D	10m3/h	5kg/h
	JXQ-10A	10m3/h	5kg/h
	JXQ-30A	30m3/h	15kg/h
30KW	KX-100SA	100m3/h	50kg/h
50KW	KX-150SA	150m3/h	75kg/h
100KW	KX-300SA	300m3/h	150kg/h
150KW	KX-450SA	450m3/h	230kg/h
200KW	KX-600SA	600m3/h	300kg/h
250KW	KX-750SA	750m3/h	330kg/h
300KW	KX-900SB	900m3/h	450kg/h
400KW	KX-1200SB	1200m3/h	600kg/h
500KW-1MW	KX-1500SB	1500m3/h	750kg/h
Caloric value of syngas	1000-1200Kcal
Gasification effiency	>75%
Voltage power	380V/400V/410V/420V 50Hz/60Hz       (Customizable)
Types of raw materials	Wheat straw, peanut shells, rice husks, corn cobs, corn stalks, wood, wood chips, wood chips, nut shells, walnut shells, macadamia shells, pistachio shells, coconut shells, hazelnut shells, chestnut shells, etc., discarded cardboard boxes (Various agricultural Biomass raw materials...)
use	Pyrolysis and gasification of various agricultural biomass and other raw materials, produce biomass synthesis gas, use biomass synthesis gas to generate electricity, or apply it to heating and so on.

Equipment introduction

Biomass gasification power generation equipment mainly consists of biomass pyrolysis gasifier and syngas power generation equipment, supplemented by shredding equipment and drum drying equipment. The whole set of equipment adopts modular design, which is convenient for transportation and installation; the biomass gasifier adopts downdraft, fluidized bed and dry purification technology, so that biomass can be fully pyrolyzed, and secondary water pollution to the natural environment can be avoided; PLC automatic control system is used to realize automatic operation of the equipment, which does not need a lot of manual operation, and saves labor; the synthesis gas generator group control The control module adopts the control technology of generator set with microprocessor as the core, which has many functions such as automatic data recording, automatic operation, automatic control, automatic protection, etc., and has good reliability and stability. The operation parameters of the unit are displayed by large screen liquid crystal, which shows large and accurate data. The project covers a small area and does not need to expropriate too much land resources. In addition, biomass gasification power generation technology has no problem of waste water and waste smoke emission. The derived products of biomass oil (TAR), wood vinegar and biomass carbon can be extracted, processed and reused in various industries, so as to maximize the resource utilization of agricultural and forestry wastes.

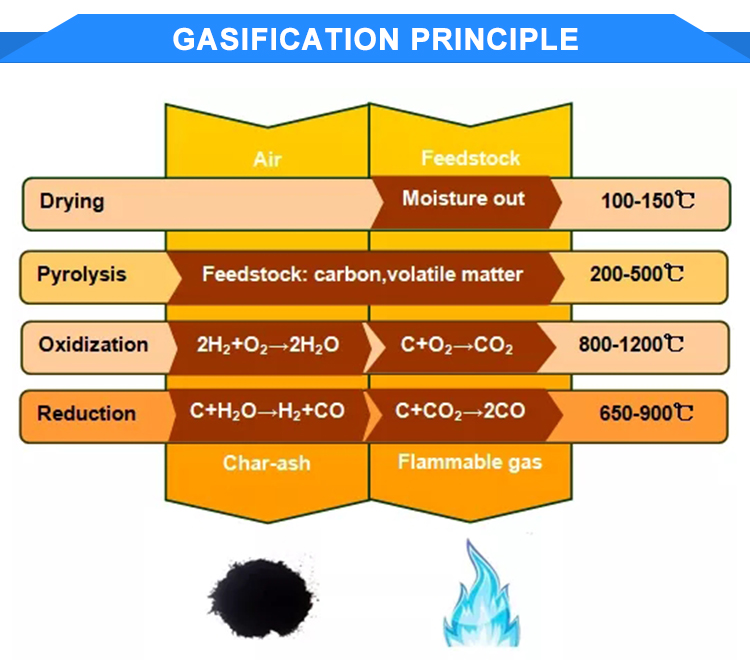

Gasification principle

Generation principle of biomass syngas: biomass raw material enters the reactor of gasifier, is heated and dried, and then with the temperature rising, its volatile matters are separated out and pyrolyzed (cracked) at high temperature. The pyrolyzed gas and biomass react with the air supplied in the oxidation zone to generate CO2 and water vapor. The heat generated by combustion is used to maintain drying, pyrolysis and lower part Endothermic reaction in the original region. The gas generated after combustion reacts with high temperature carbon layer through reduction zone (c + CO2 = 2CO, C + HO2 = H2 + CO) to generate biomass synthesis gas containing Co, H2, CH4, CMHN and other components, which is led out from the lower part and sent out for use after removing impurities such as tar through purification system. The ash is discharged from the lower part of the gasifier.

Types of raw materials

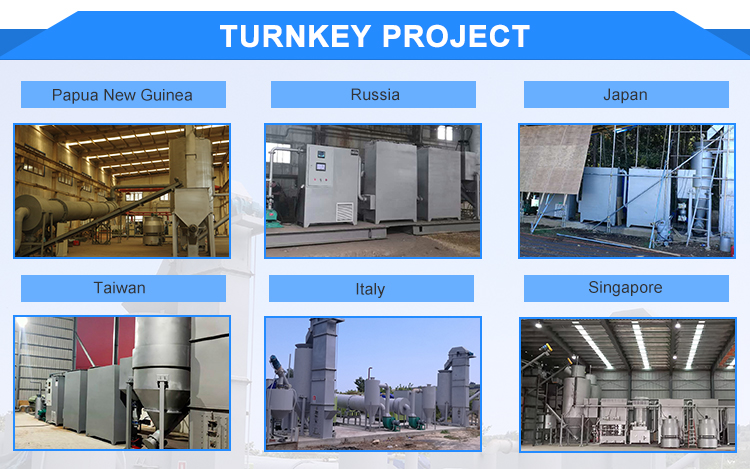

Project presentation

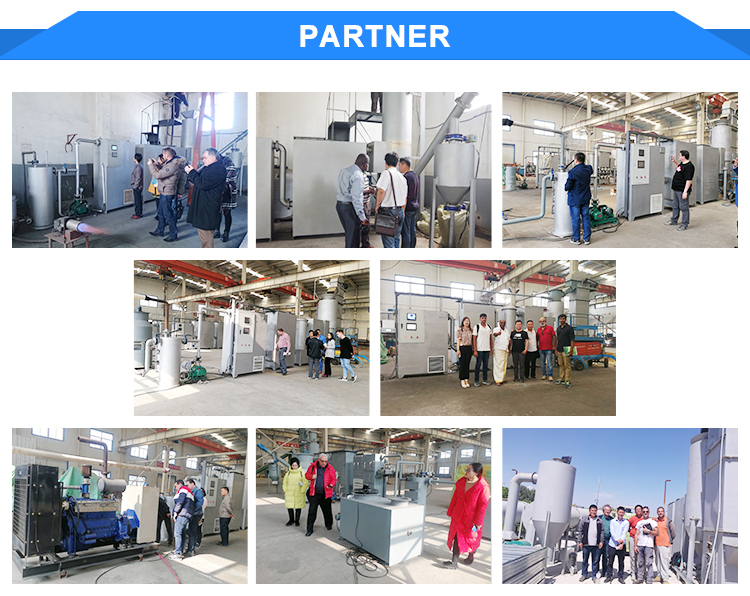

Our customers

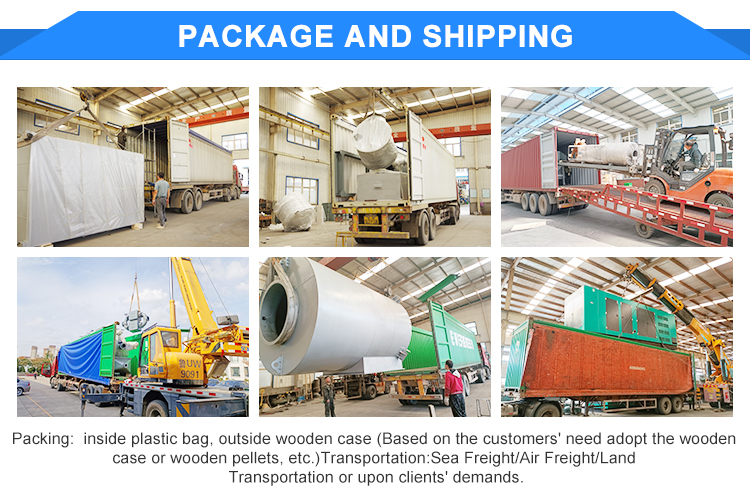

Equipment delivery

Ordering process

Company profile

Qingdao Kexin New Energy Technology Co., Ltd., founded in 1998 (Pingdu Tianwei environmental protection gas equipment plant), is located at No. 71, Hong Kong Road, Pingdu City, Qingdao city. It is a high-tech biomass syngas power generation equipment and its supporting products, which integrates equipment research and development, production and manufacturing, sales, operation and export trade. Since its establishment for 24 years, adhering to the business philosophy of "integrity", "innovation", "professionalism" and "pragmatism", the company has devoted itself to the development and research and development of biomass energy. Aiming at the new functions and characteristics of new energy materials biomass materials, we have successfully developed kx series biomass gasification equipment and syngas power generation series products: JXQ series Series (simple type), KX series (downdraft fluidized bed type) biomass gasification equipment, KX series biomass syngas power generation system, biomass syngas special hot blast stove, biomass raw material drum dryer, biomass shredder, drum drying equipment, dust collector and other products. The whole set of biomass gasification power generation equipment has obtained a number of national invention patents and utility model patents. KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on. Our company is committed to meet the needs of customers from all over the world and provide customers with higher quality after-sales service. With the basic principles of "reasonable price", "high-quality products", "punctual delivery time" and "good after-sales service", we sincerely look forward to cooperating with friends at home and abroad, developing together, making progress together and creating a mutually beneficial and win-win future.

FAQ

1. what kind of material our gasifier use rice husk, wood chips, saw dust, straw, urban waste, MSW, nearly all of the biomass material can be the fuel of our gasifier. with half of biomass material, our gasifier even can process the rubber and plastic 2.is there any requirement for the raw material our gasifier needs material as follow size30mm   moisture20% 3.can user see the running plant in workshop yes, we have a running gasifier with genset in our workshop, we can start it and test for you 4.Where did you sold the gasifier USA,Finland, Thailand,Russia,Italy and so on
