Wood Chip Biomass 2024 Best Quality 400kw Generator Provided PLC Energy conservation gasification waste to energy

Equipment display

30-1000KW biomass gasification power generation equipment

Specification parameters

Name	500-1000KW biomass gasification power generation equipment
Power generation	Model	Syngas production	Raw material consumption
	JXQ-10D	10m3/h	5kg/h
	JXQ-10A	10m3/h	5kg/h
	JXQ-30A	30m3/h	15kg/h
30KW	KX-100SA	100m3/h	50kg/h
50KW	KX-150SA	150m3/h	75kg/h
100KW	KX-300SA	300m3/h	150kg/h
150KW	KX-450SA	450m3/h	230kg/h
200KW	KX-600SA	600m3/h	300kg/h
250KW	KX-750SA	750m3/h	330kg/h
300KW	KX-900SB	900m3/h	450kg/h
400KW	KX-1200SB	1200m3/h	600kg/h
500KW-1MW	KX-1500SB	1500m3/h	750kg/h
Caloric value of syngas	1000-1200Kcal
Gasification effiency	>75%
Voltage power	380V/400V/410V/420V 50Hz/60Hz       (Customizable)
Types of raw materials	Wheat straw, peanut shells, rice husks, corn cobs, corn stalks, wood, wood chips, wood chips, nut shells, walnut shells, macadamia shells, pistachio shells, coconut shells, hazelnut shells, chestnut shells, etc., discarded cardboard boxes (Various agricultural Biomass raw materials...)
use	Pyrolysis and gasification of various agricultural biomass and other raw materials, produce biomass synthesis gas, use biomass synthesis gas to generate electricity, or apply it to heating and so on.

Equipment introduction

Biomass gasification power generation equipment mainly consists of biomass pyrolysis gasifier and syngas power generation equipment, supplemented by shredding equipment and drum drying equipment. The whole set of equipment adopts modular design, which is convenient for transportation and installation; the biomass gasifier adopts downdraft, fluidized bed and dry purification technology, so that biomass can be fully pyrolyzed, and secondary water pollution to the natural environment can be avoided; PLC automatic control system is used to realize automatic operation of the equipment, which does not need a lot of manual operation, and saves labor; the synthesis gas generator group control The control module adopts the control technology of generator set with microprocessor as the core, which has many functions such as automatic data recording, automatic operation, automatic control, automatic protection, etc., and has good reliability and stability. The operation parameters of the unit are displayed by large screen liquid crystal, which shows large and accurate data. The project covers a small area and does not need to expropriate too much land resources. In addition, biomass gasification power generation technology has no problem of waste water and waste smoke emission. The derived products of biomass oil (TAR), wood vinegar and biomass carbon can be extracted, processed and reused in various industries, so as to maximize the resource utilization of agricultural and forestry wastes.

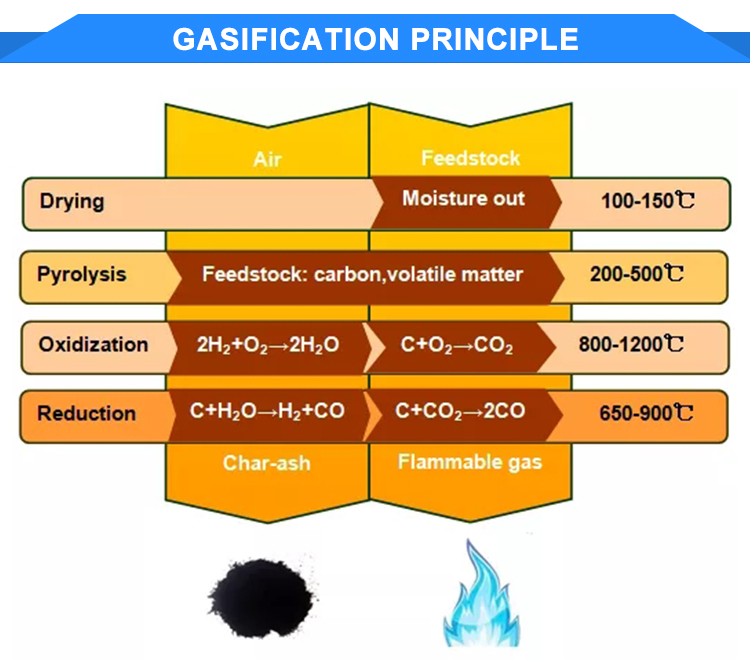

Gasification principle

Generation principle of biomass syngas: biomass raw material enters the reactor of gasifier, is heated and dried, and then with the temperature rising, its volatile matters are separated out and pyrolyzed (cracked) at high temperature. The pyrolyzed gas and biomass react with the air supplied in the oxidation zone to generate CO2 and water vapor. The heat generated by combustion is used to maintain drying, pyrolysis and lower part Endothermic reaction in the original region. The gas generated after combustion reacts with high temperature carbon layer through reduction zone (c + CO2 = 2CO, C + HO2 = H2 + CO) to generate biomass synthesis gas containing Co, H2, CH4, CMHN and other components, which is led out from the lower part and sent out for use after removing impurities such as tar through purification system. The ash is discharged from the lower part of the gasifier.

Types of raw materials

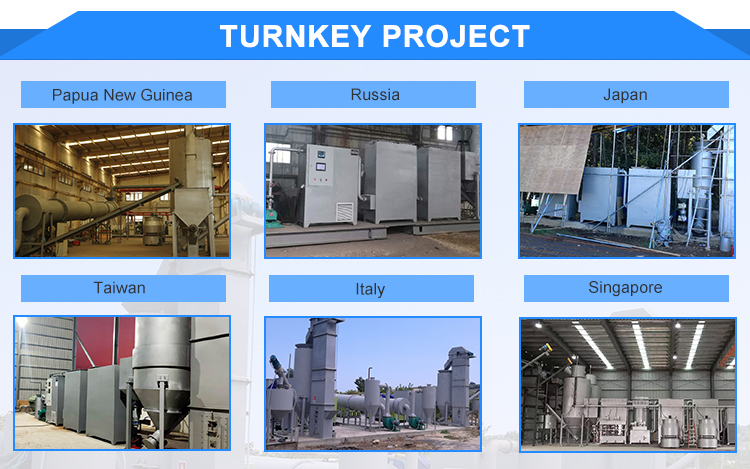

Project presentation

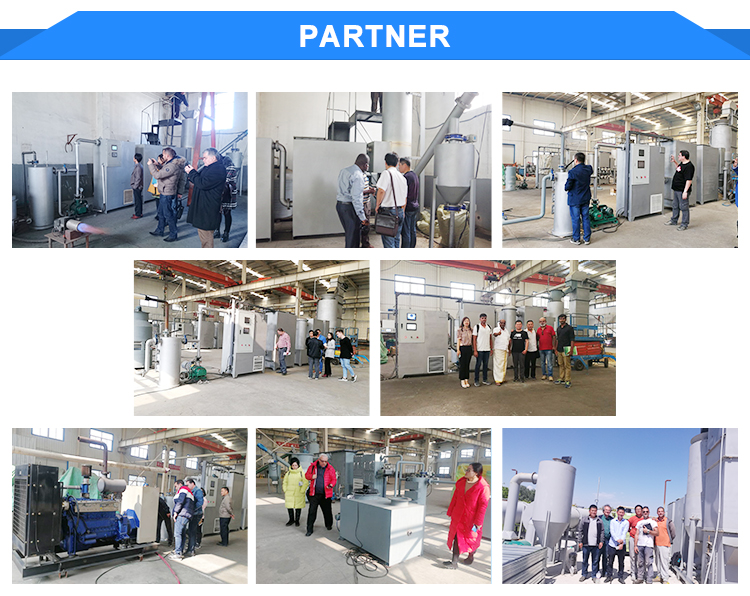

Our customers

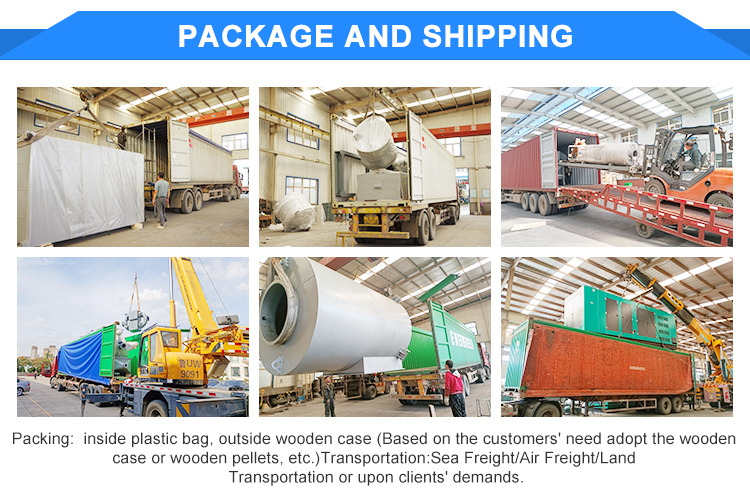

Equipment delivery

Ordering process

Company profile

Qingdao Kexin New Energy Technology Co., Ltd., founded in 1998 (Pingdu Tianwei environmental protection gas equipment plant), is located at No. 71, Hong Kong Road, Pingdu City, Qingdao city. It is a high-tech biomass syngas power generation equipment and its supporting products, which integrates equipment research and development, production and manufacturing, sales, operation and export trade. Since its establishment for 24 years, adhering to the business philosophy of "integrity", "innovation", "professionalism" and "pragmatism", the company has devoted itself to the development and research and development of biomass energy. Aiming at the new functions and characteristics of new energy materials biomass materials, we have successfully developed kx series biomass gasification equipment and syngas power generation series products: JXQ series Series (simple type), KX series (downdraft fluidized bed type) biomass gasification equipment, KX series biomass syngas power generation system, biomass syngas special hot blast stove, biomass raw material drum dryer, biomass shredder, drum drying equipment, dust collector and other products. The whole set of biomass gasification power generation equipment has obtained a number of national invention patents and utility model patents. KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on. Our company is committed to meet the needs of customers from all over the world and provide customers with higher quality after-sales service. With the basic principles of "reasonable price", "high-quality products", "punctual delivery time" and "good after-sales service", we sincerely look forward to cooperating with friends at home and abroad, developing together, making progress together and creating a mutually beneficial and win-win future.

KEXIN

Presents the best quality Wood Chip Biomass Generator for 2024 with a capacity of 400kw. This generator is designed to be highly energy-efficient, and the key to its functionality is the advanced PLC system is incorporated into it. This system ensures that the generator can efficiently gasify waste and convert it into energy, making it a great tool for conservation and reducing environmental pollution.

The Wood Chip Biomass Generator is designed to utilize a number of waste products, specifically wood chips, making it an investment is very good businesses and individuals alike. Wood chips are widely available and will be sourced easily, which makes it and fuel is perfect generator. This generator is really a must-have for individuals who want to save on energy expenses.

KEXIN ensures that they provide the product quality product is best with their clients, and this Wood Chip Biomass Generator is no exception. This generator offers reliable and stable performance is perfect for organizations that require continuous and uninterrupted energy supply along with its state-of-the-art PLC system.

Certainly one of the key benefits associated with the Wood Chip Biomass Generator is its ability to convert waste products into energy. This will make it an asset is great industries that produce high amounts of biomass waste, such as agriculture, food processing, and forestry. These industries can reduce their ecological impact while saving on power expenses employing this generator.

There are many other advantages of making use of KEXIN's Wood Chip Biomass Generator. It includes a carbon is low, meaning it emits little CO2 and other harmful gases to the atmosphere. This will make it a product is eco-friendly is much sought after by businesses that are dedicated to sustainability. The generator is also very easy to use and maintain, making it and choice is perfect businesses looking low maintenance costs.

Get your hands on KEXIN's best quality Wood Chip Biomass Generator today and experience uninterrupted energy supply like never before.
